Building Process

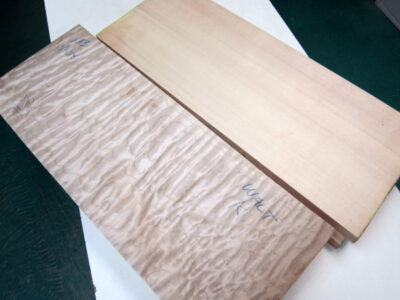

Selecting top and back sets

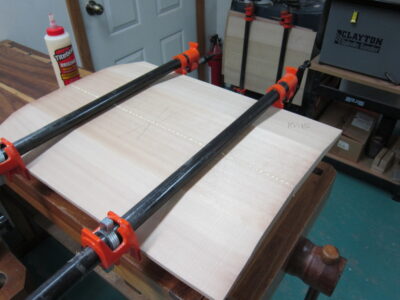

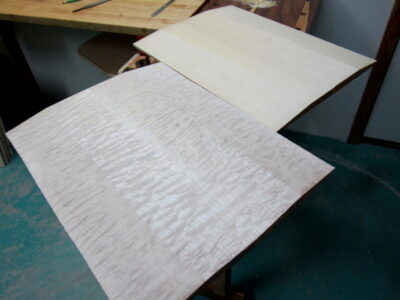

Joining the two halves of a top set
Top and back sets joined, ready for machine carving

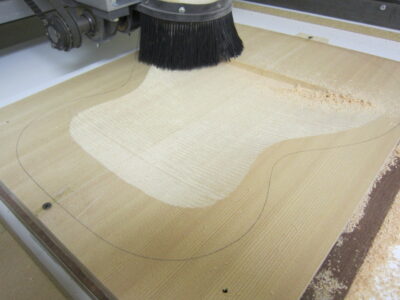

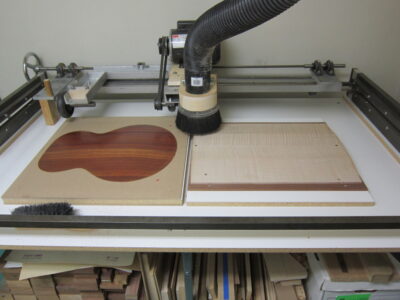

Carving template and back secured to carving machine, set up for carving outer face contour
This manually operated dupli-carving machine uses an aggressive dado type cutter, allowing full depth cut in a single pass

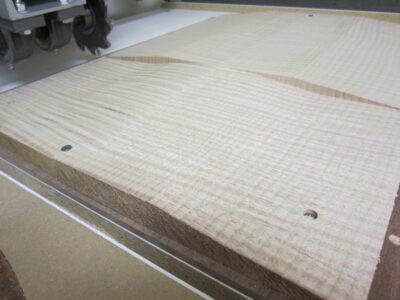

Close-up, cutting outer face of a back plate
Close-up, cutting inner face of a top plate

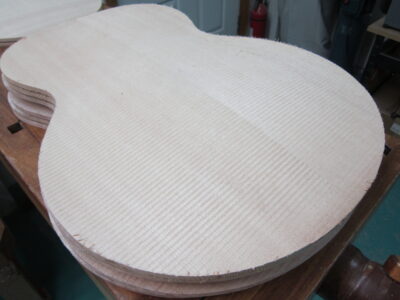

Top plates after machine carving and perimeter cut

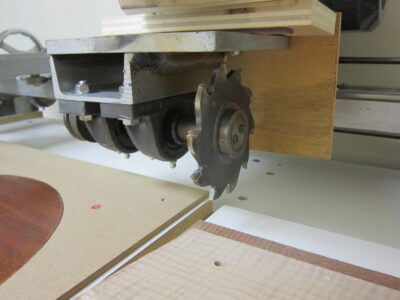

Milling plate perimeter to uniform thickness

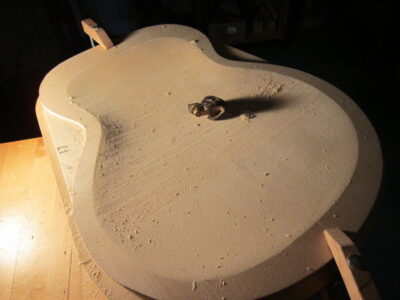

Hand carving the inside of a top plate

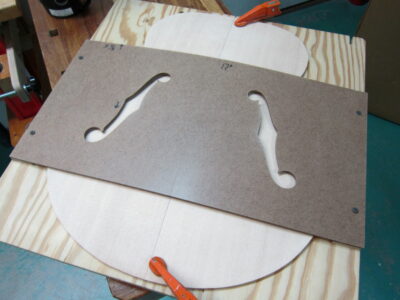

Set-up for cutting f-holes

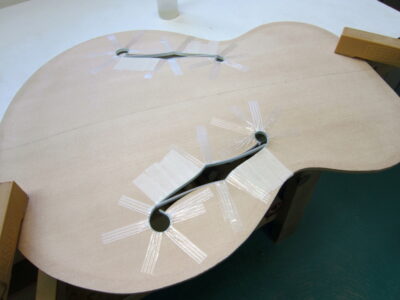

Binding f-holes

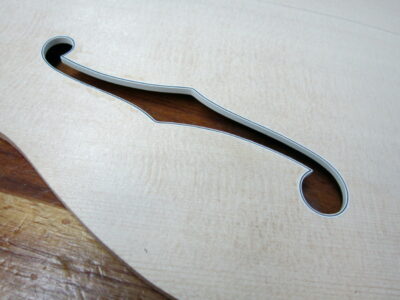

F-hole binding completed

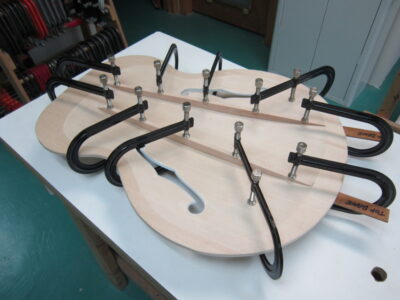

Gluing the top braces

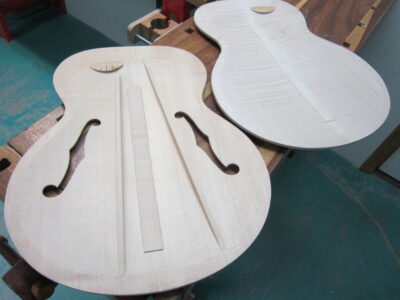

Completed plates, with top bracing, center seam strips and cutaway filler ramps installed

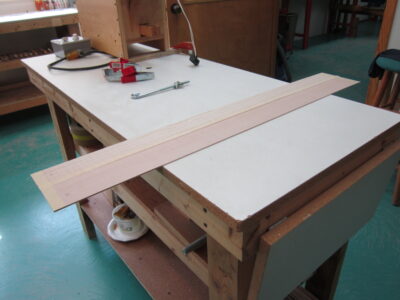

Rim stock, sanded to thickness and ready for bending

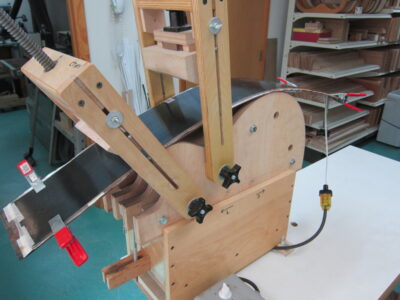

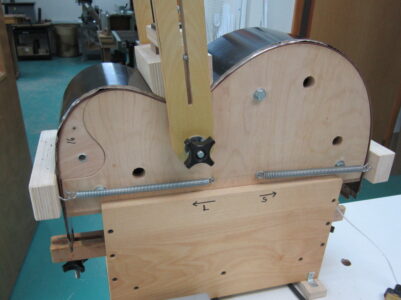

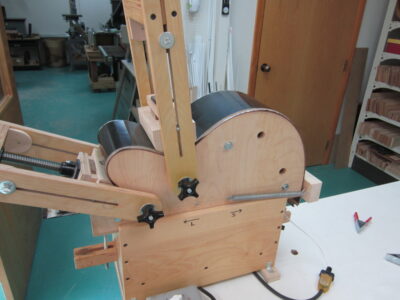

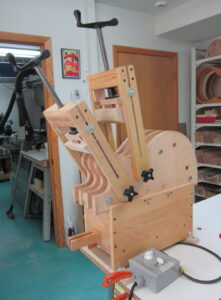

The bending machine, set up for cutaway rims
Rim stock is sandwiched between spring steel slats with a silicone-rubber heater element attached underneath

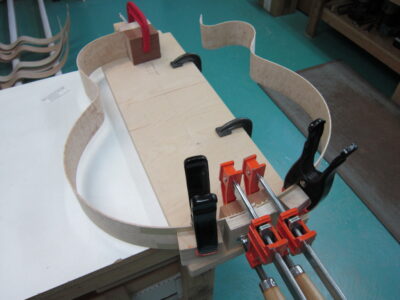

Bending a pair of cutaway sides
Non-cutaway sides are bent on the same form using a filler piece in the cutaway area

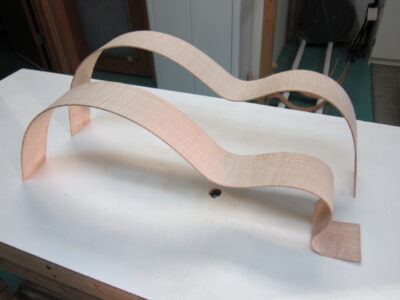

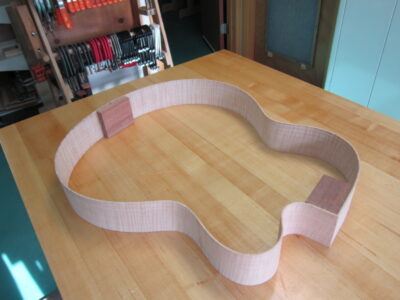

A set of bent rims
Joining rims to neck and end blocks

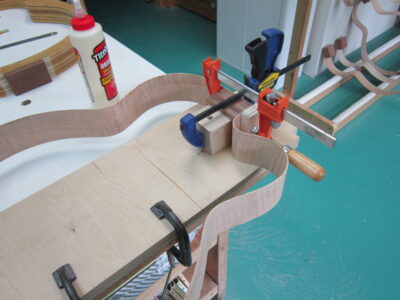

Gluing cutaway rim to neck block
Rims joined to blocks

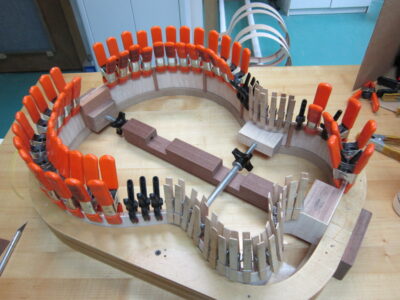

Attaching kerfing strips to rims

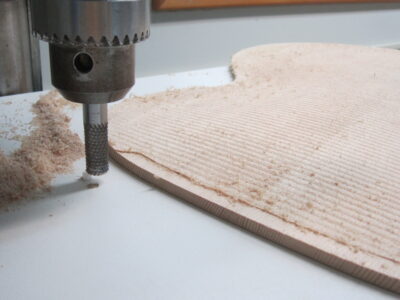

Milling the kerfing flat

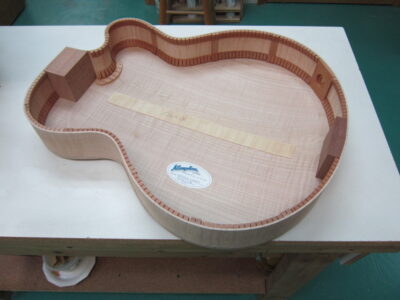

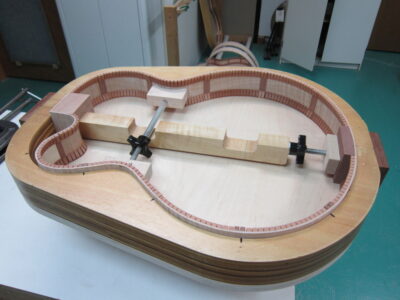

Completed rims in body mold, ready for attaching back plate

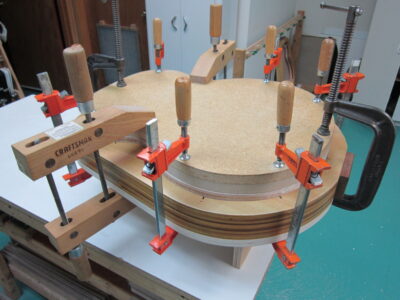

Gluing the back plate to rims
Rims with back attached

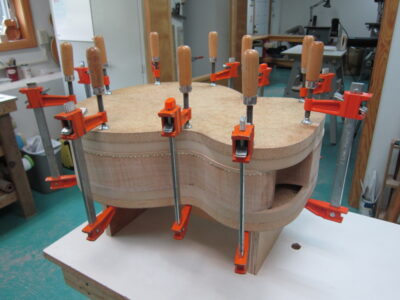

Gluing top to rims

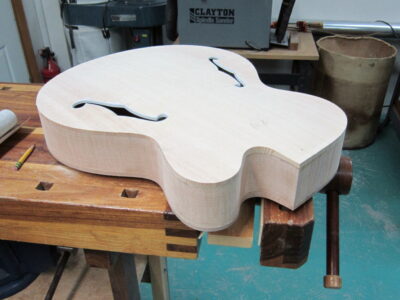

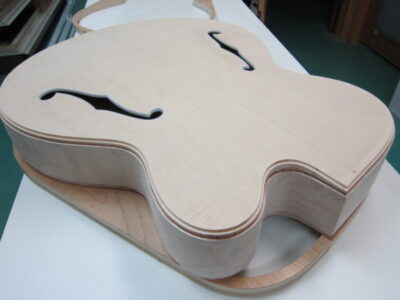

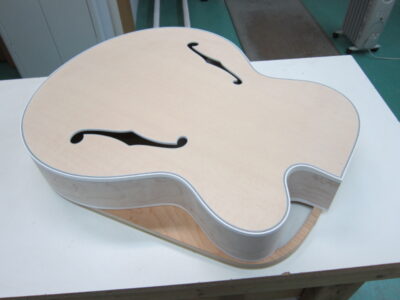

Top and back attached and trimmed flush to rims
Binding rabbets cut

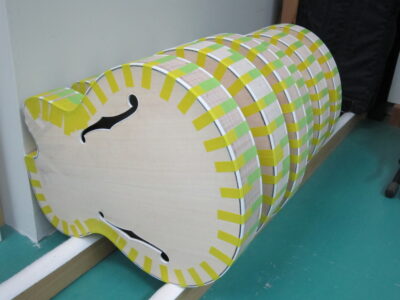

Body bindings secured with tape while glue dries
Body binding completed

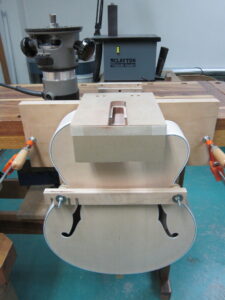

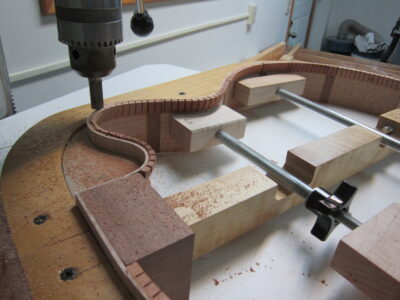

Routing the body dovetail

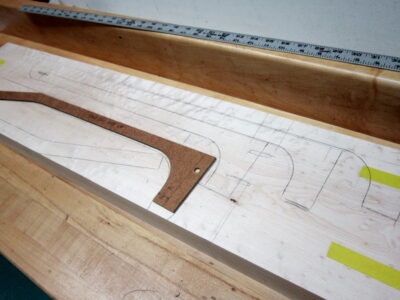

Tracing a template to lay out neck blanks on Birdseye Maple neck stock

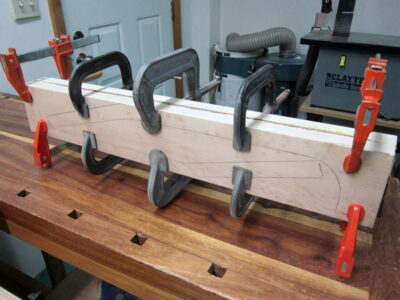

Gluing up a 3-piece neck blank
Rough cut neck blank, inlaid fingerboard and peghead faceplate

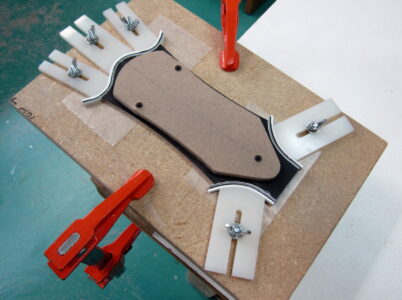

Bindings are glued onto the peghead faceplate using a jig made specifically for this purpose

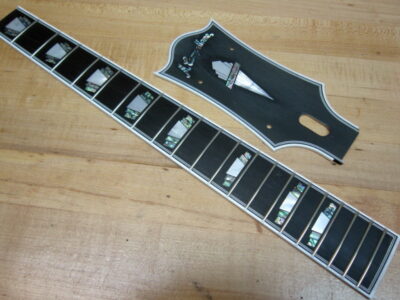

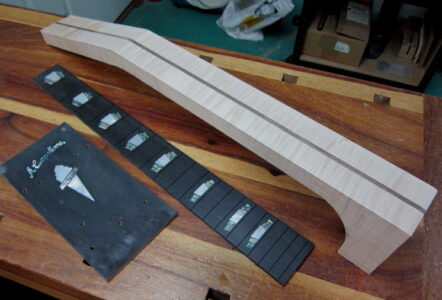

Completed fingerboard and peghead faceplate

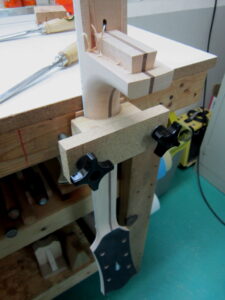

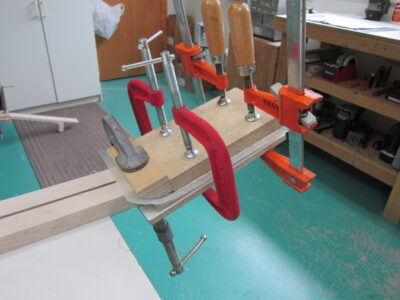

Gluing peghead ears to neck blank

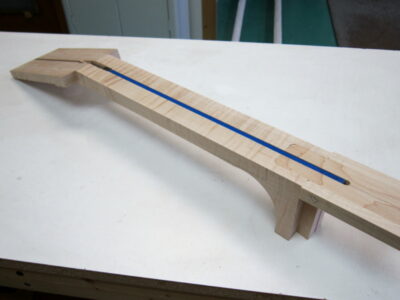

Neck blank with dovetail cut, fingerboard extension added and truss rod installed
Gluing on the rear peghead veneer

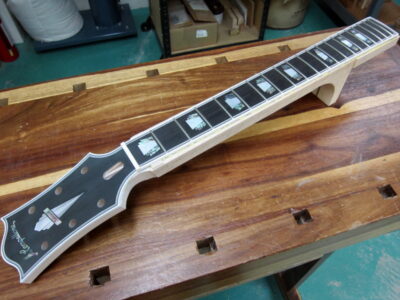

Fingerboard and peghead faceplate attached to neck blank

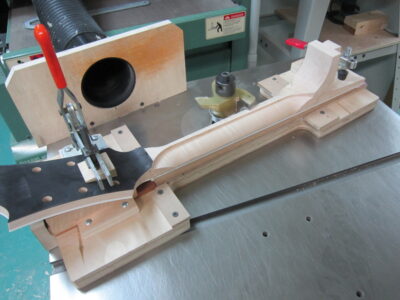

Rough shaping neck with quarter round cutter

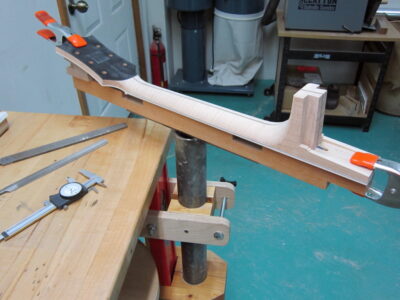

Final hand shaping of neck
Trimming neck joint to fit to body

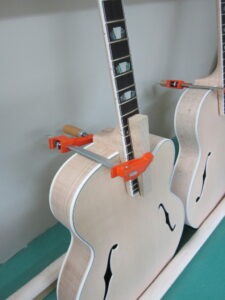

Gluing neck to body

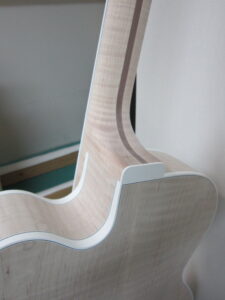

Neck/body joint completed

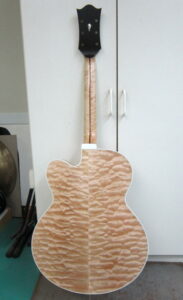

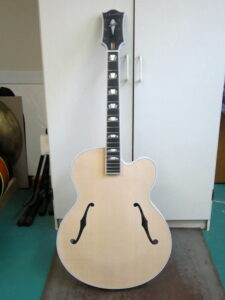

Completed guitar, "in the white", ready for finish application
First lacquer coats applied, intensifying the figure of the maple

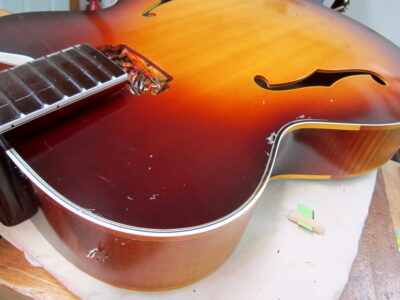

Scraping bindings after sunburst color application

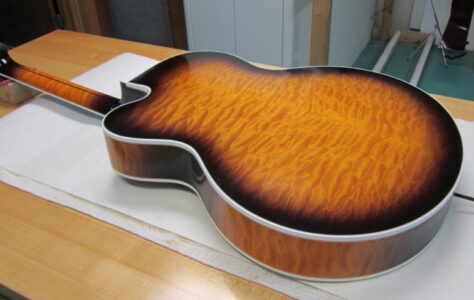

Completed application of a "Vintage Sunburst" with bindings scraped clean, ready for build-up clear coats

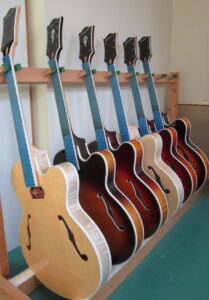

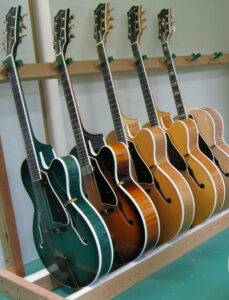

A run of six guitars with spray work completed

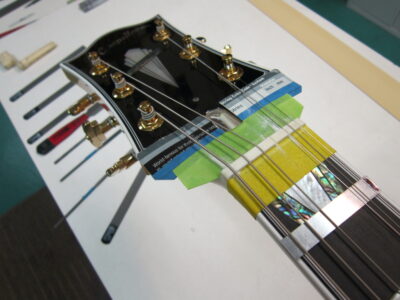

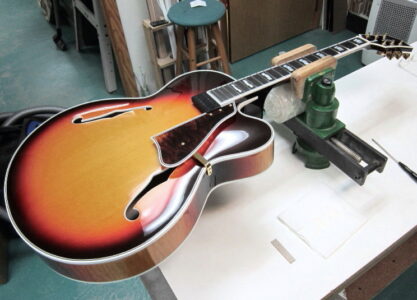

Set up for hardware installation
A graduated thickness gap gauge aids in cutting final nut slot depths
A five instrument run, completed and ready for packing and delivery
